    Application of the Drive and Control System for MD(P)-Type Wear-Resistant Multistage Pumps Used in Mining

    Publication Date:

    2025-10-12

    Author:

    Source:

    Facebook Linkedin Twitter Tumblr Pinterest

    MD(P) The wear-resistant, multistage pump designed specifically for mining applications is widely used in scenarios such as mines, tunnels, and hydropower stations to drain underground water surges. It currently serves as the primary method on the market for removing groundwater, ensuring the safety of underground engineering projects. Its drive and control system is a sophisticated setup, incorporating an electric motor, frequency converter, and PLC The control system and other components enable the drive and control of the pump, ensuring stable operation under various conditions and providing reliable liquid transportation support for mining production. In this article, we introduce a manufacturer specializing in multi-stage pumps for mining applications. Changsha Zhonglian Pump Industry We will provide a detailed introduction to the application of the drive and control system for the MD(P)-type wear-resistant, multistage pump designed for mining use.

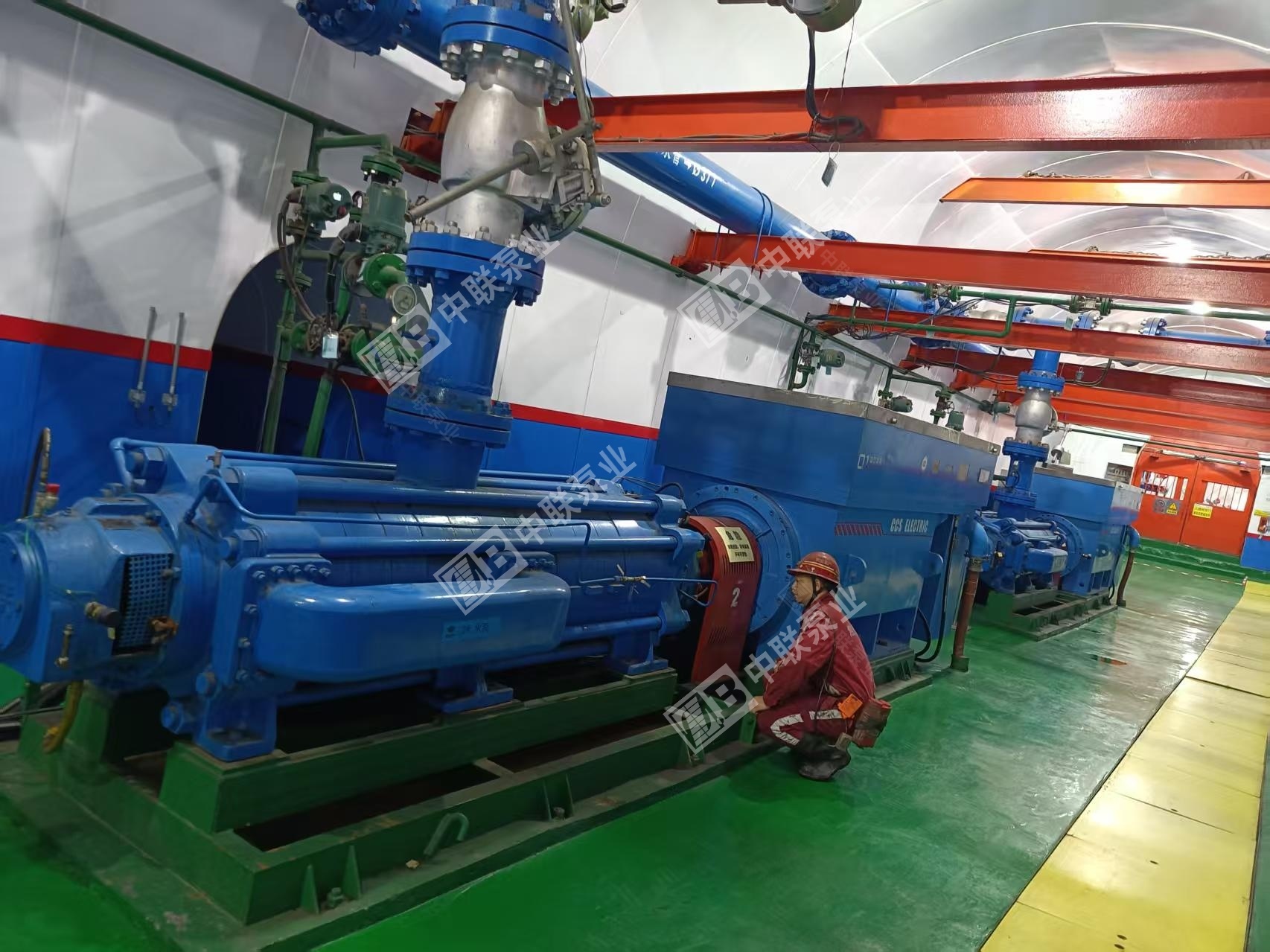

    Mining multistage pump





    I. MD Features of the wear-resistant, multi-stage pump designed for mining applications



    MD The main features of the wear-resistant, multi-stage pump designed for mining applications include:



    1.  Wear resistance:

    This pump is capable of handling liquids containing solid particles, making it particularly well-suited for the demanding conditions found in mining environments.



    2.  High head and high flow rate:

    The pump is designed to operate stably under high head and large flow rates, meeting the diverse liquid-handling needs of mining operations.



    II. The Role of the Drive and Control System



    The drive and control system is the core component of the entire pump, and its main functions include:



    1.  Driving function:

    Provides a power source to rotate the pump body, generating the required flow rate and pressure.



    2.  Control functions:

    Adjust the pump's speed, flow rate, pressure, and other parameters according to actual needs, ensuring stable operation under various operating conditions.



    III. Components and Operating Principles of the Drive and Control System



    MD The drive and control system for the wear-resistant, multi-stage pump designed for mining applications primarily includes the following components:



    1.  Electric motor:

    The electric motor is connected to the pump body via a coupling, providing the power source that drives the pump's rotation. Depending on specific requirements, either an AC motor or a DC motor can be selected. The choice of motor directly influences the pump's performance and efficiency.



    2.  Frequency converter:

    The inverter is used to adjust the speed of electric motors by precisely controlling their rotational speed through changes in the power supply frequency. Additionally, the inverter enables soft starting of motors, reducing the impact on the power grid and extending the lifespan of equipment.



    3. PLC Control System:

      PLC (The Programmable Logic Controller) is the core control component of the entire pump. Through programming, PLC It can achieve automated operation of the pump. PLC It can automatically adjust the inverter's output based on the input signals (such as pressure, flow rate, etc.), thereby enabling precise control of the pump's various parameters.



    4. Real-Time Monitoring and Security Assurance



    To ensure the safe operation of the pump, the system is also equipped with various sensors, such as:



    1.  Pressure sensor:

    Monitor the pump's working pressure in real time to ensure it operates within a safe range.



    2.  Flow sensor:

    Monitor the pump's flow rate to help promptly detect abnormalities and take appropriate measures.



    3.  Temperature sensor:

    Monitor the temperature of the pump body and motor to prevent overheating.



    When the pump experiences an abnormal condition, PLC The control system will promptly issue alerts and automatically adjust parameters or shut down the equipment to ensure the safety of both devices and personnel. This intelligent monitoring and control system significantly enhances the pump's reliability and safety. MD The drive and control system for the wear-resistant, multistage mining pump is a complex and precise system, powered by an electric motor, a frequency converter, and PLC The coordinated operation of components such as the control system ensures that the pump runs smoothly under various operating conditions. These advanced technologies not only enhance the pump's performance but also extend the equipment's service life, providing a solid guarantee for mining production. If you're interested in MD For any questions or if you need further assistance regarding the wear-resistant, multi-stage mining pump, please don’t hesitate to contact us: 15616442288 (WeChat with the same number)—we look forward to providing you with professional support and services.
